Industrial Trolley Bearing Assemblies Supplier
Trolley bearings are specialized rolling components used to guide loads along tracks or rails in systems such as overhead conveyors, sliding doors, curtain carriers, garage door rollers, and light-duty trolleys. Unlike standard bearings, trolley bearings are often integrated into rolling hardware and designed to manage both radial and axial forces in dynamic environments.
At BRK Bearings, we supply a focused range of trolley bearings, engineered for use in commercial, industrial, and material handling systems. We support the following bearing types commonly used in trolley assemblies:
Trolley Bearing Types We Support
-
Deep Groove Ball Bearings — used in track-roller assemblies for smooth, quiet operation
-

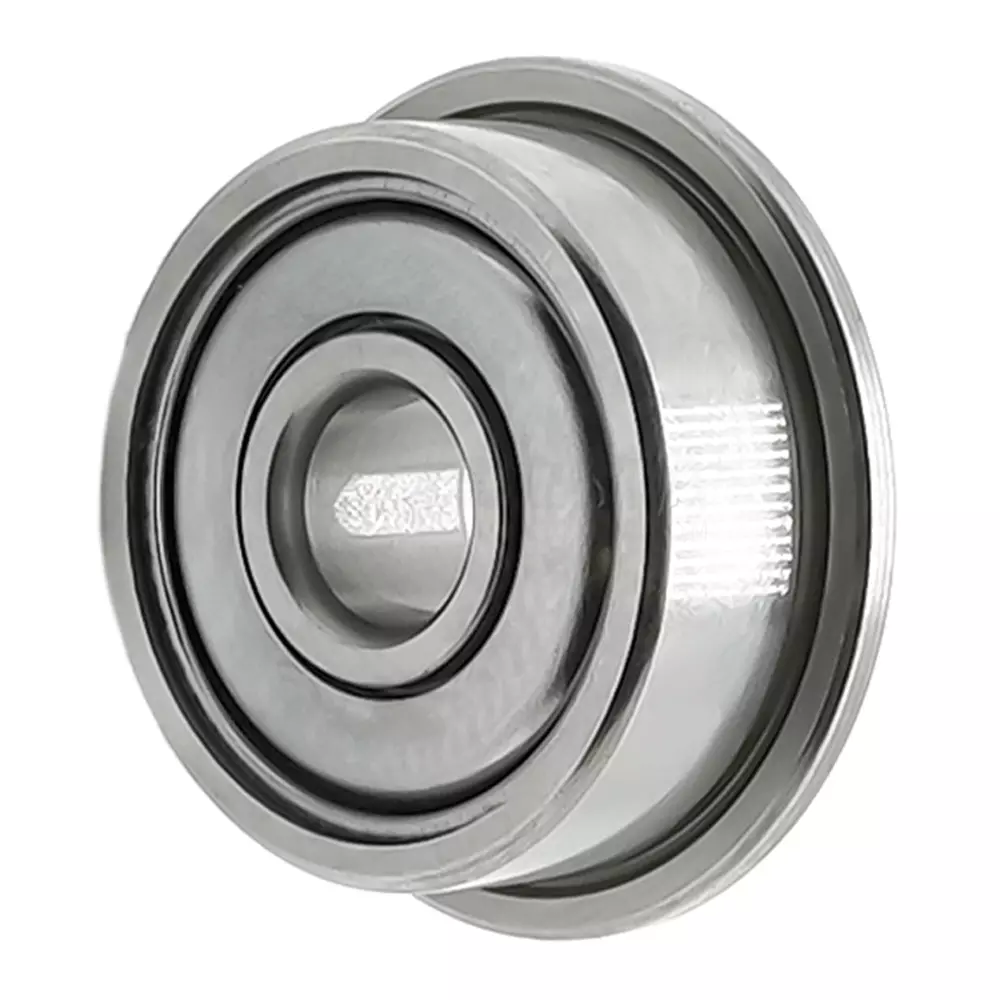

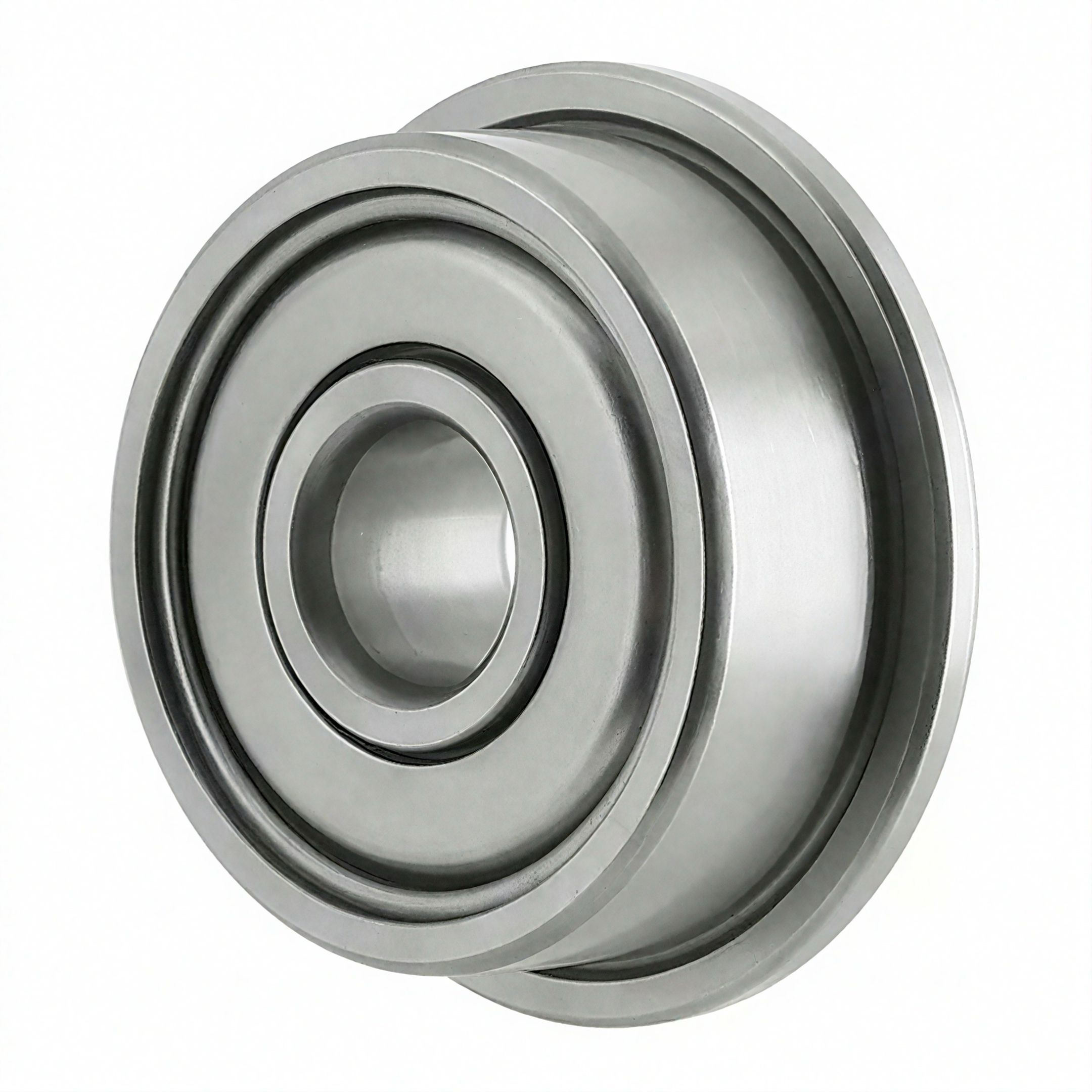

Flanged Ball Bearings — maintain alignment and prevent axial drift in rail-mounted trolleys

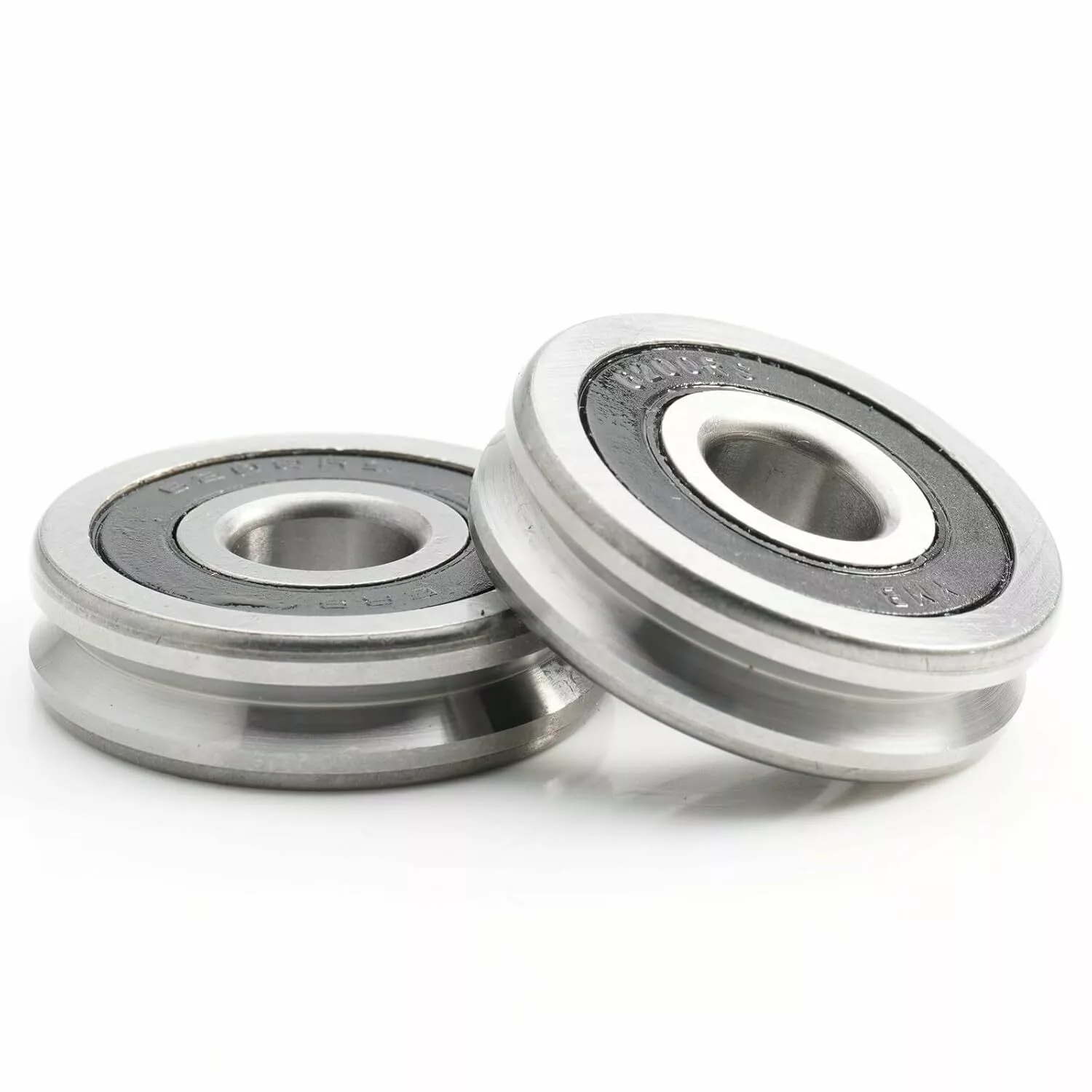

- V-Groove Ball Bearings — guide along angle-iron or inverted tracks in curtain, door, or light conveyor systems
-

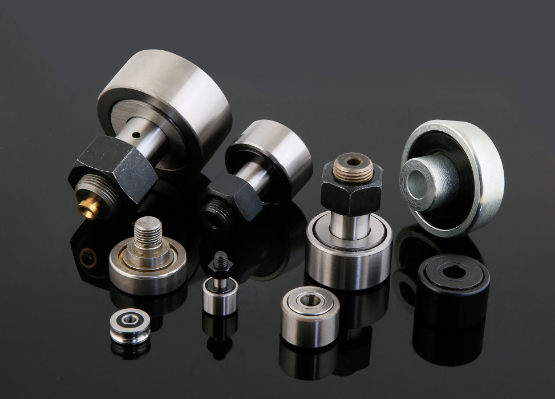

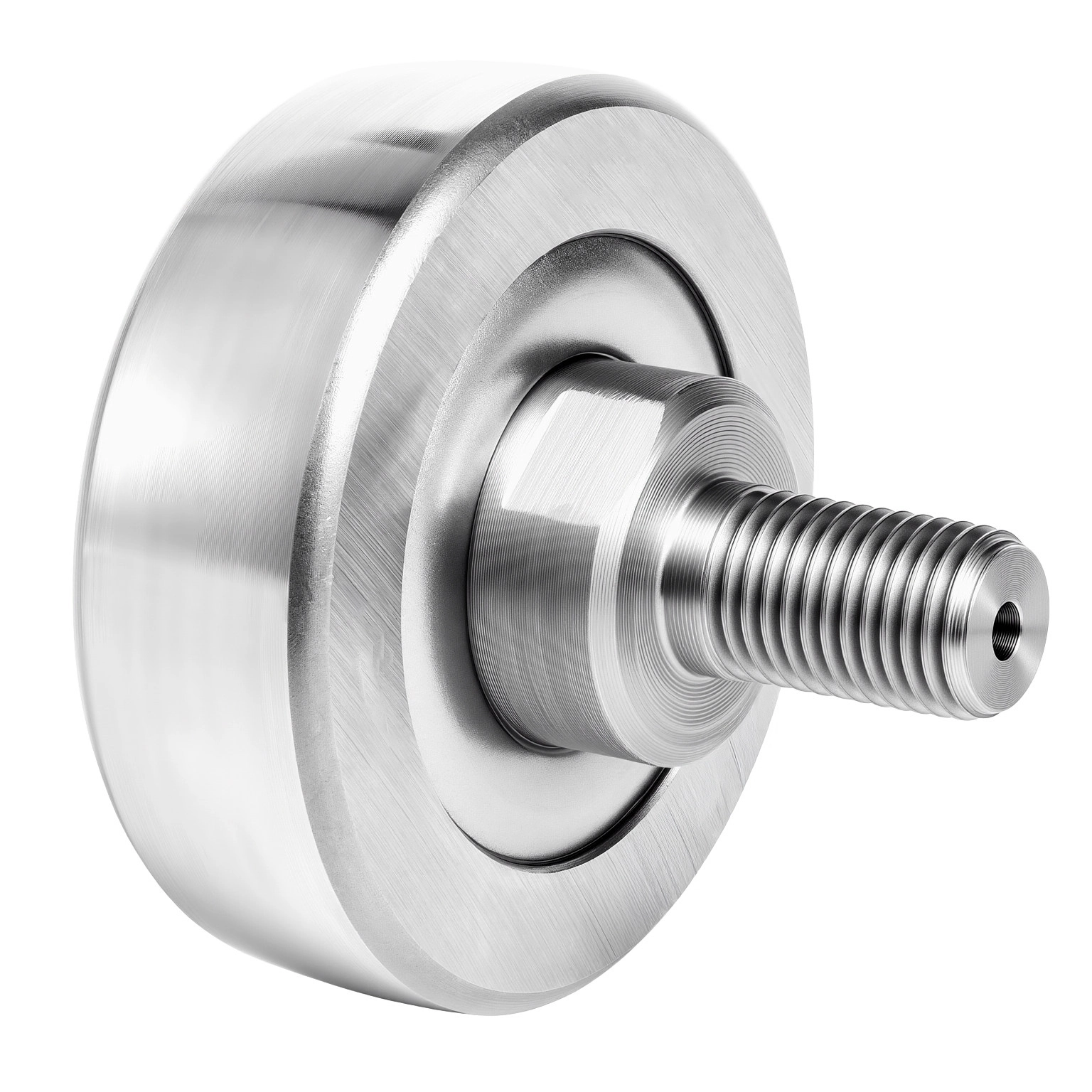

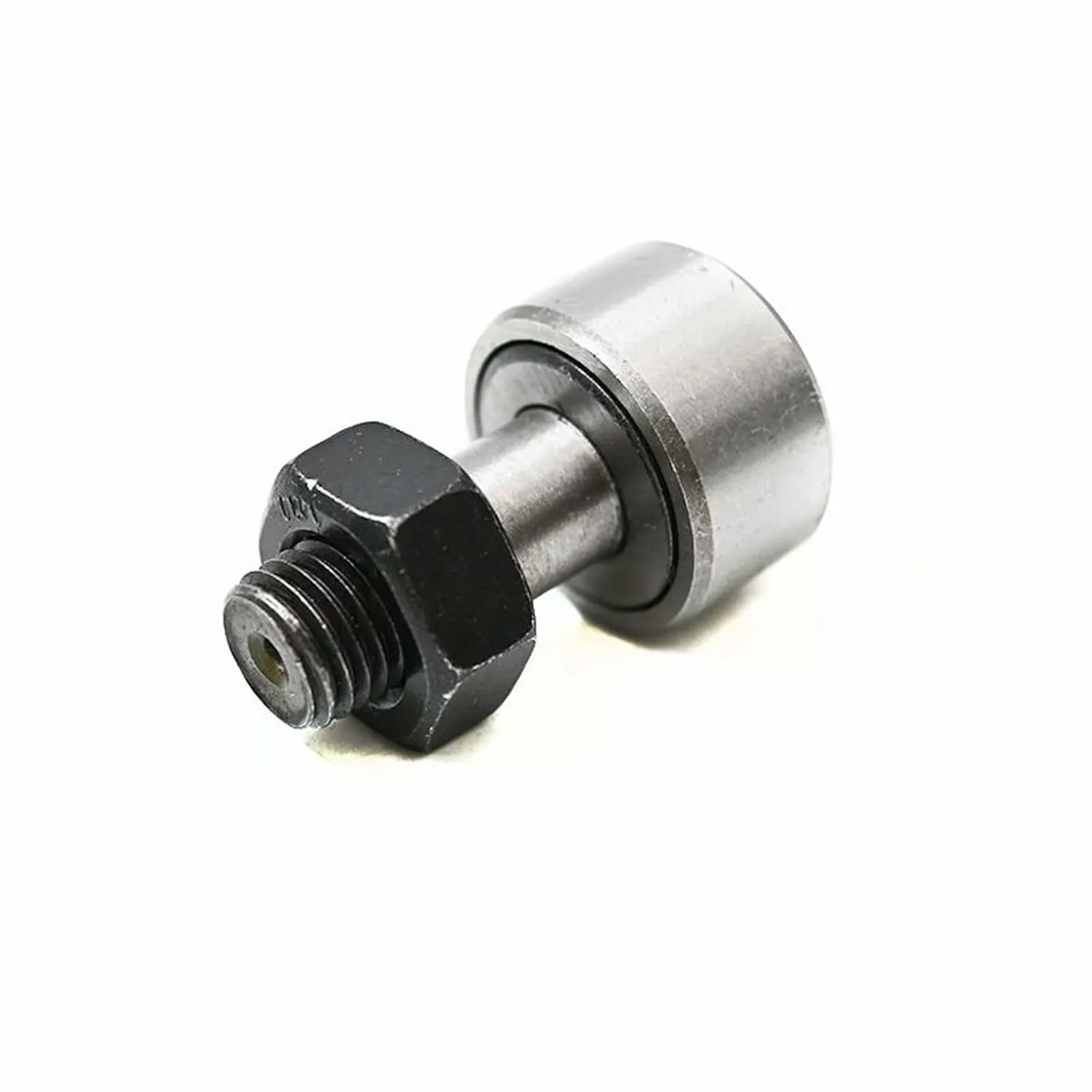

Cam Follower Roller Bearings — stud- or yoke-mounted bearings for high-load, track-following applications in conveyor and automation systems
All bearings are available in chrome steel or stainless steel, with sealing and lubrication options to suit a wide range of operating conditions and environments. Check on the stainless steel materials we support.
Track & Rail Systems
BRK Bearings offers exceptional trolley bearing assemblies at competitive prices and with thoughtful service. Request a quote to find out how we can supply the trolley bearing assemblies for your track & rail systems
BRK’s Customization For Trolley Bearings
Trolley bearings must meet diverse mechanical and environmental demands. BRK offers application-specific solutions designed around real-world constraints.
Customizable Load Handling & Bearing Designs
-
Large Load Ratings: Supports radial loads of 50–500 kg per trolley, with axial loads up to 30% of radial forces in curved or switching tracks
-
Various Bearing Types: Available in deep groove ball bearings, flanged designs, and cam followers (stud- and yoke-type), with caged or full-complement options
-
Static Safety: Designed with static load safety factors of 1.5× to 2.5× to prevent deformation under parked or shock-loaded conditions
-
Shock Resistance: Cam follower options include heavy stud types for resisting high-impact or repetitive indexing loads
Customizable Environmental & Motion Optimizations
-
Various Sealing Options: Multi-stage sealing options (labyrinth, lip, or triple-lip) for dust, moisture, and abrasive exclusion
-
Corrosion Resistance: Stainless steel or zinc/nickel-coated bearing options for washdown, outdoor, or corrosive environments
-
Low Noise: Precision-grade (ABEC-5+) bearings and polymer dampers available for reduced vibration and quiet operation
-
High Speed Ratings: Speed-rated designs (up to 1,000 RPM / 1 m/s) with optimized clearances and caged internal geometry for smoother motion
Customizable Lubrication Strategies
-
Maintenance-Free Option: Sealed-for-life options rated for 20,000–50,000 hr in light- to mid-duty environments
-
Serviceable Design Option: Greaseable designs with ports or caps for periodic maintenance in high-duty cycles
-
Various Grease Options: Specialized greases: polyurea for high temp (230 °C+), food-grade for washdown, synthetic low-temp for cold storage (down to –30 °C)
Customizable Misalignment Management
-
Misalignment Allowance: Crowned roller profiles allow for 1–2° misalignment without edge loading or stress concentration
-
Self-Alignment: Available with self-aligning geometries or floating mount compatibility to distribute load evenly across all wheels
- Flexible Mounting: Optional axial float, oversized bores, or slotted mounting allow flexible wheel positioning in 3- or 4-wheel trolley frames
Industries and Applications We Support

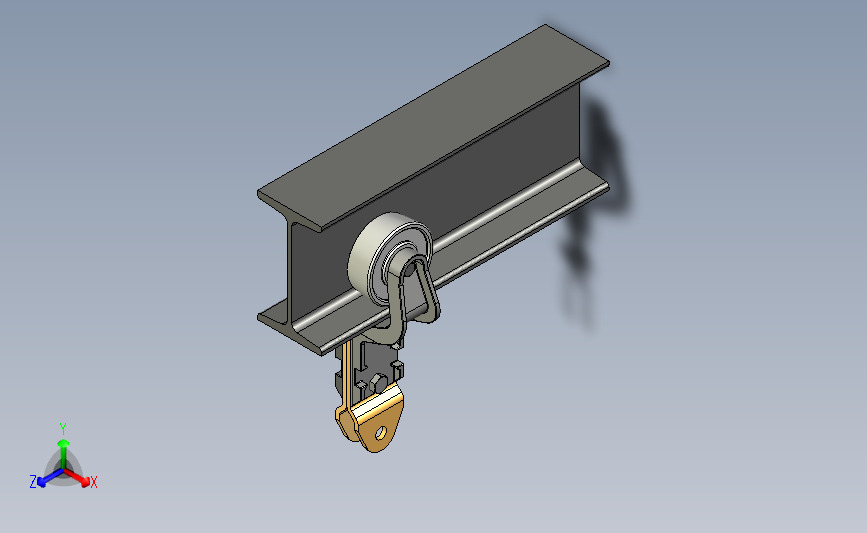

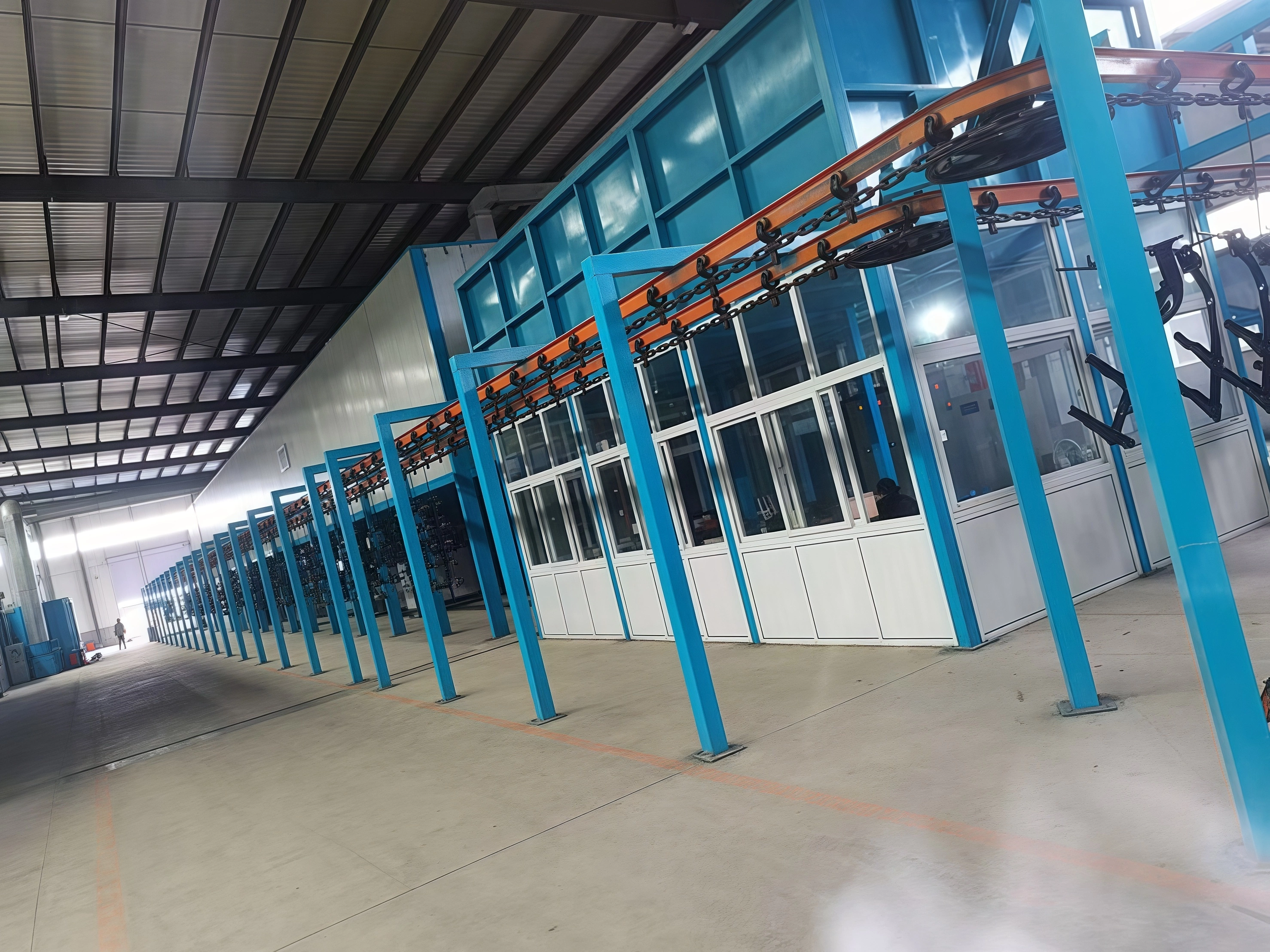

Overhead Conveyors & Monorails (Manufacturing & Material Handling)
-
Typical conditions: Continuous-duty operation (24/7), high radial and occasional axial loads, temperatures up to 230 °C, exposure to dust, chemicals, or washdown in paint, food, or foundry environments
-
How BRK helps: Heavy-duty steel bearing designs with full-complement or deep-groove ball bearings, labyrinth seals, optional grease fittings, and material options (stainless, heat-treated) for long life under industrial abuse
Material Transport Trolleys & Hoist Cranes
- Typical conditions: Intermittent use with high static and rolling loads (up to several thousand lbs), risk of shock loads from lifted weight, occasional outdoor or rough-duty environments
- How BRK helps: Flanged steel wheel bearings with high static and dynamic load ratings, oversized or reinforced bearing assemblies with optional grease ports, and designs that manage misalignment and high impact loads

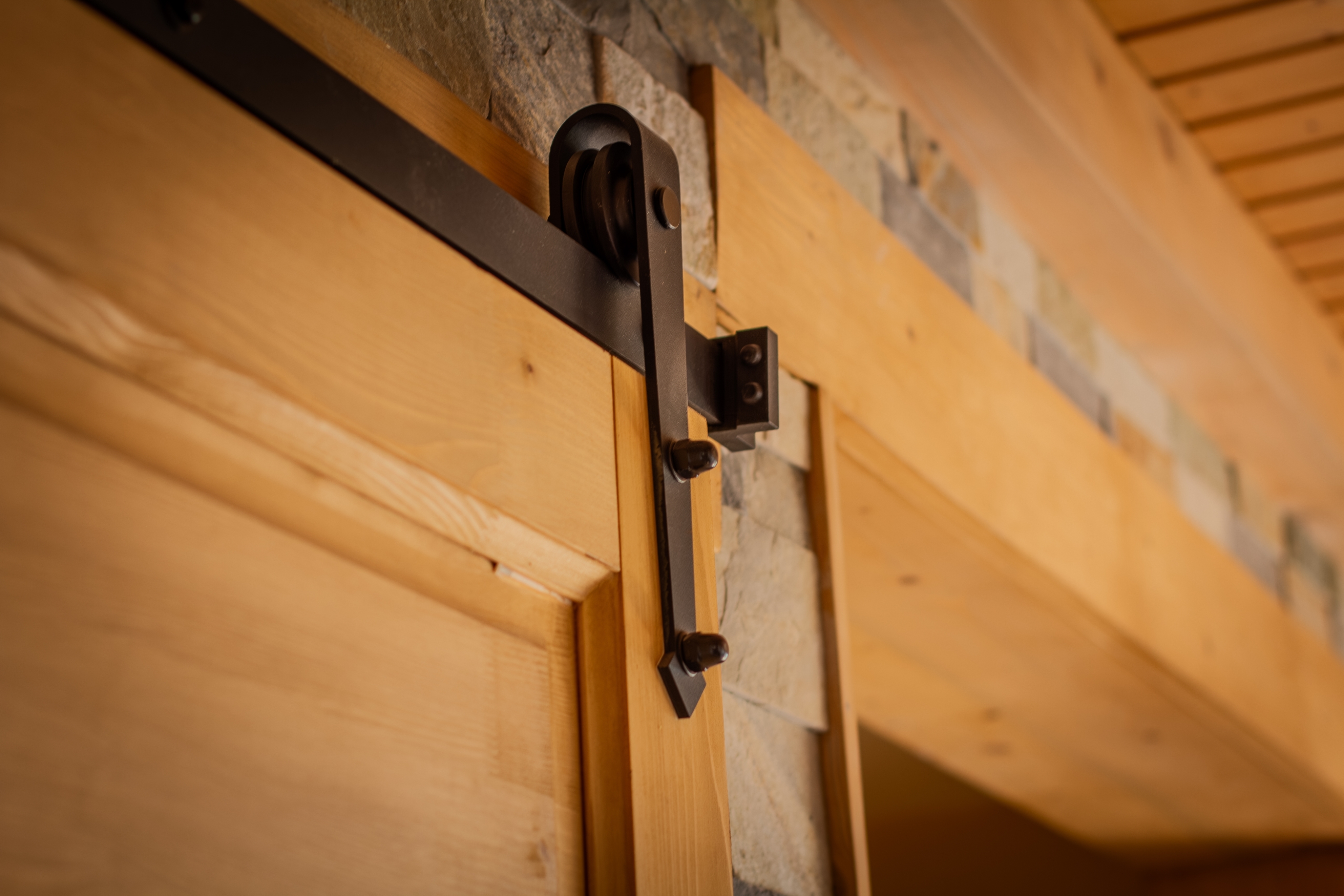

Sliding Doors & Commercial Gates
-
Typical conditions: Outdoor exposure (rain, dirt, temperature swings), intermittent use, moderate static loads (100–500+ lbs), and low-noise, low-friction operation
-
How BRK helps: Sealed-for-life ball bearings with zinc or stainless options, nylon- or polymer-tired wheels for noise reduction, and precision-ground components to ensure smooth, maintenance-free rolling

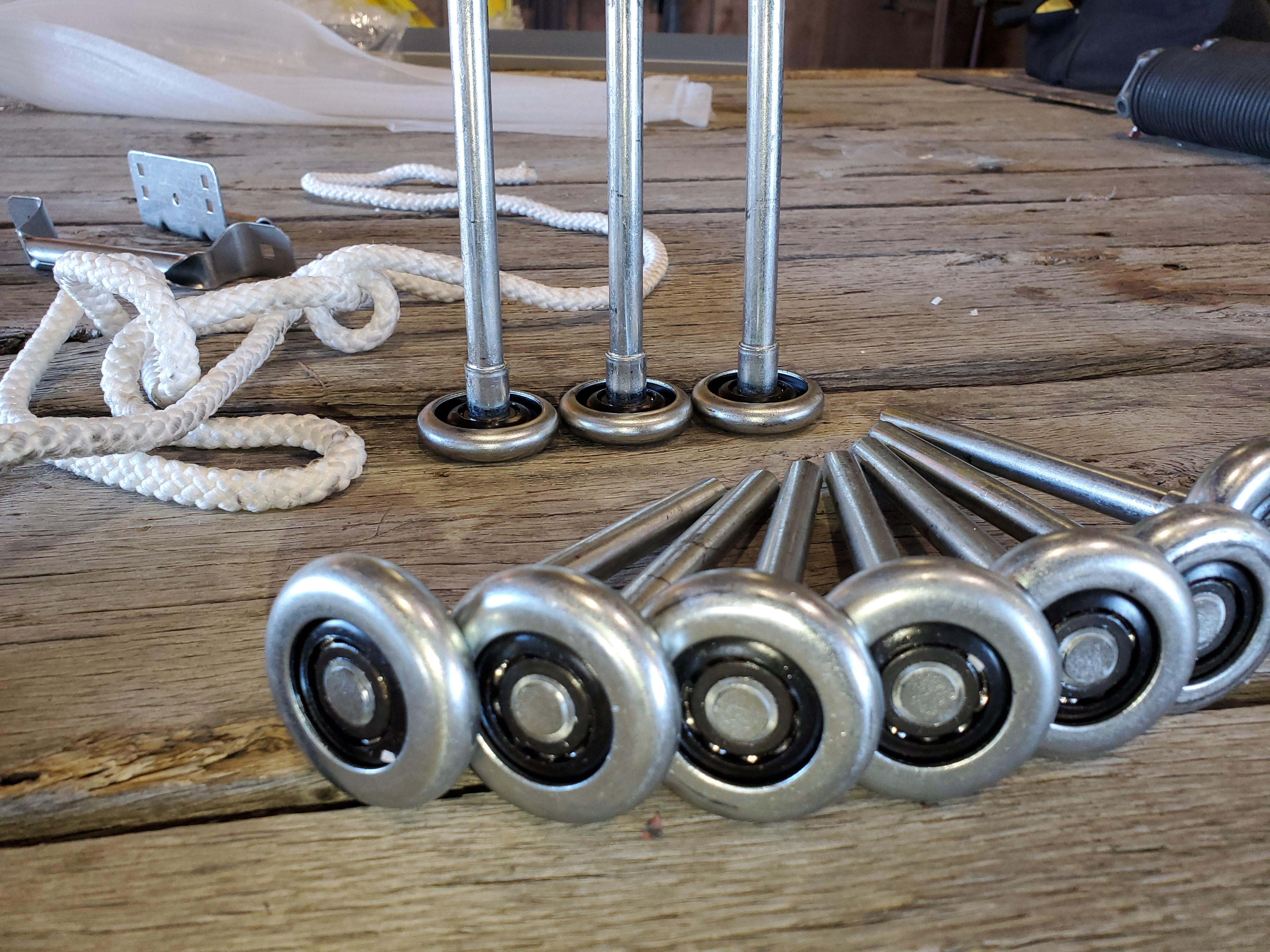

Garage Door Rollers (Residential & Commercial Overhead Doors)
-
Typical conditions: Moderate load (30–75 lbs/wheel), intermittent duty cycles, exposure to dust, moisture, and temperature swings, with a strong emphasis on smooth, quiet operation
-
How BRK helps: Precision-sealed ball bearings for silent movement, zinc-plated or stainless steel housings for corrosion resistance, and nylon or polymer wheels to reduce noise and wear on metal tracks
Your Partner on Trolley Bearing Assemblies
At BRK Bearings, our trolley wheels and bearing assemblies are made according to ISO standards and are quality checked to ensure optimal performance. Contact us to learn more about our product offerings.
